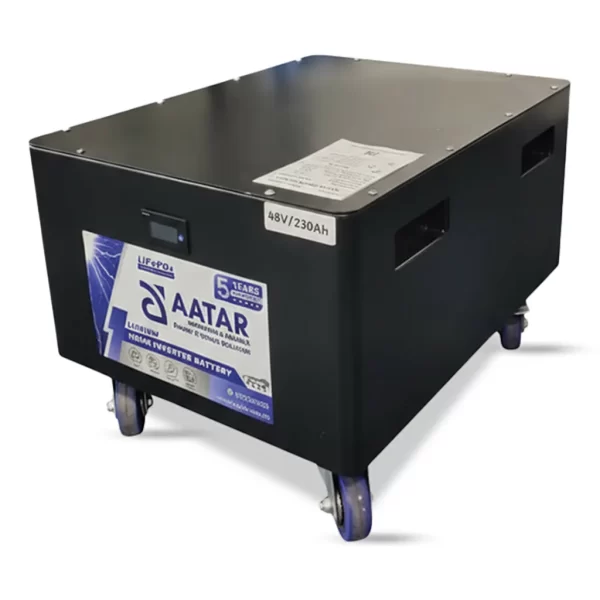

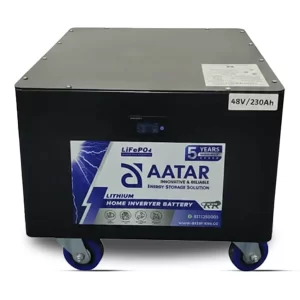

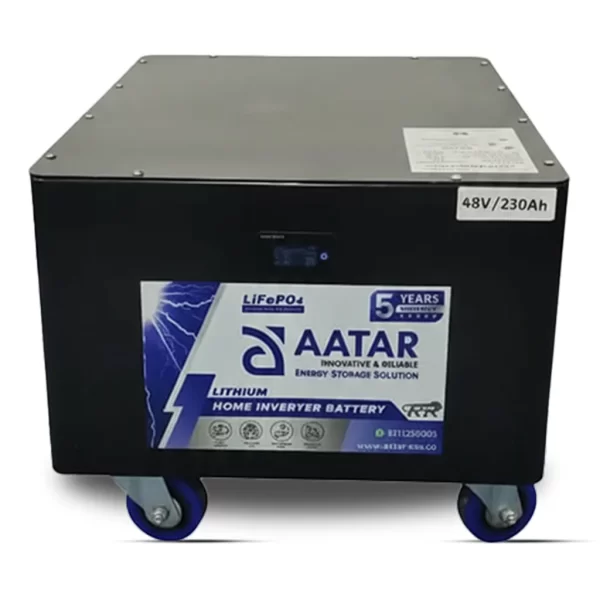

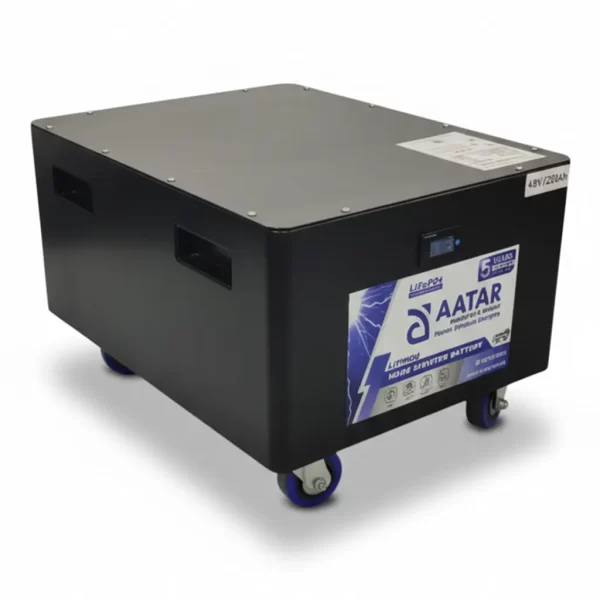

48V-51V 230Ah LiFePO4 Battery Pack

48V-51V 230Ah LiFePO4 Battery Pack

48V 230Ah AATAR ESS LiFePO₄ Battery Pack offers 11kWh of reliable energy for commercial and industrial use. Built-in BMS ensures safety, efficiency, and long service life with RS485, CAN, and Bluetooth communication support.

Share Product on Social Media

Facebook
LinkedIn
X

Description

The 48V 230Ah AATAR ESS Battery Pack is a high-performance lithium iron phosphate (LiFePO₄) energy storage solution engineered for commercial and industrial energy systems.
With a nominal voltage of 48V and a capacity of 230Ah, it delivers 11kWh of efficient, long-duration energy, ideal for renewable energy storage, backup systems, and load management applications.

Equipped with an intelligent Battery Management System (BMS), it provides comprehensive protection against overcharge, over-discharge, short circuit, overcurrent, and temperature fluctuations, ensuring optimal performance and extended lifespan.

This battery pack supports RS485, CAN, and Bluetooth communication protocols, allowing real-time monitoring, remote diagnostics, and easy integration with modern inverters and control systems.
Designed for reliability, scalability, and safety, the AATAR ESS 48V 230Ah Battery Pack is the perfect choice for commercial setups requiring consistent and sustainable power.

Specification

Nominal Voltage48V
Capacity230Ah
Energy11 kWh
ChemistryLFP
BMSSmart
BluetoothVersion – 5.0
Communication ProtocolCAN/RS-485
Battery Protections
  1. Low Temperature Protection
  2. Over Charge Protection
  3. Over Current Protection
  4. Over Discharge Protection
  5. Over Temperature Protection
  6. Short Circuit Protection
Upper Cut off Voltage54.7V ± 0.2V
Lower Cut off Voltage42V ± 0.2V
Continuous Charging Current55A
Peak Charging Current60A
Continuous Discharging Current115A
Peak Discharging Current125A
MCBAvailable
SOC DisplaySmart
ApplicationSmart Hybrid Inverter
Weight86.7 KG
Dimension (LxWxH)570x440x320 mm
